UFS Metal Street Joe Atkinson high-low 4x64/60mm black

The Solá Equipment x Joe Atkinson aluminum street skating frames were designed to hold larger, faster rolling wheels in the front or back positions of the frame, while maintaining a low-riding position. Additionally, riders can experiment with different wheel rockering options for a variety of skating experiences.

Note: Requires clearance for 64mm wheels at front and back of soleplates or boots.



TECHNICAL SPECIFICATIONS

Aluminum Frame Body

Extruded 6061 T6 hardened aluminum, CNC milled into its final shape

Treated with a surface-hardening anodized finish

Universal Frame System (UFS) bolt configuration to fit all corresponding boots

Max. Wheel Size - 64mm (outside), 60mm (inside). The use of 64mm wheels on the front or back may require soleplate modifications.

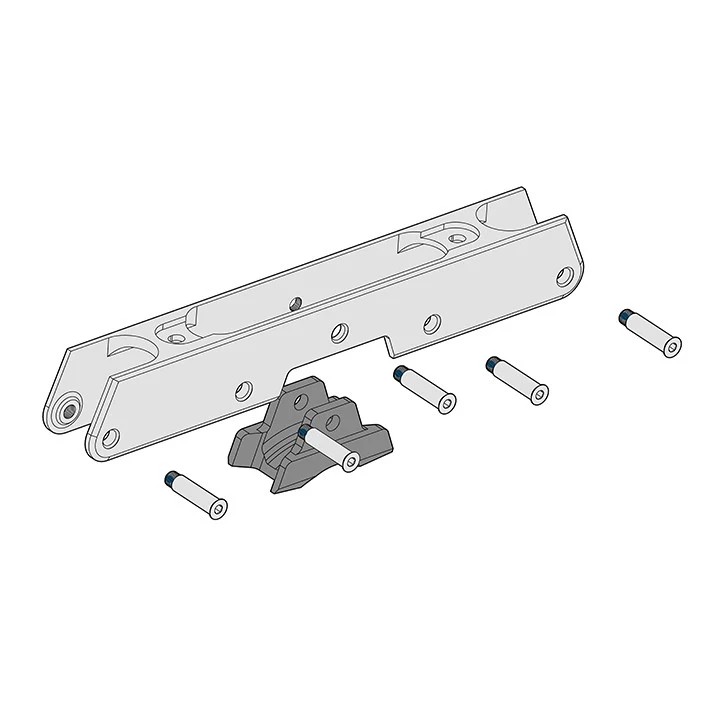

Replaceable H-block System - V2

The replaceable H-Block is made from a naturally slick and wear resistant injection-molded polymer for all-around street or park skating.

The V2 h-block design provides increased protection against wheel bite.

Recommended for flat-rockered setups.

Sold in pairs

One-Way Axles - Version 2

The CNC turned, Black Oxide Steel Alloy screw directly into frame walls, reducing weight and complexity.

10mm deep tool cavity helps to keep bolt heads from stripping with regular use
A nylon patch is bonded to the threads, adding friction to resist loosening from vibration
Two spare axles included in each package

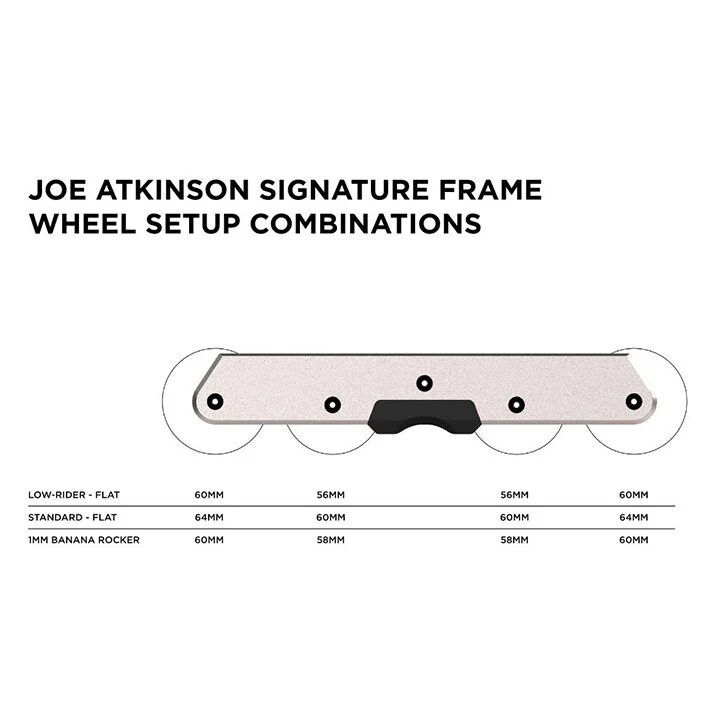

SIZING

255mm wheelbase: size S, Recommended for US 6-9 / EU 38-42

275mm wheelbase: size L, Recommended for US 9-12 / EU 42-45


Outside Max. Wheel Size - 64mm

Inside Max. Wheel Size- 60mm
